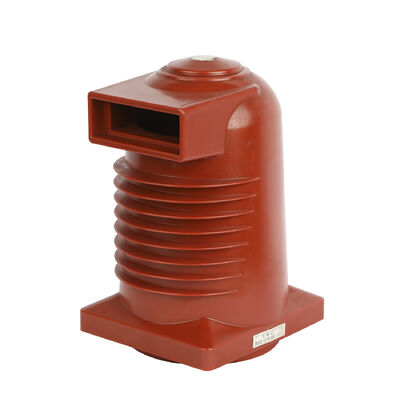

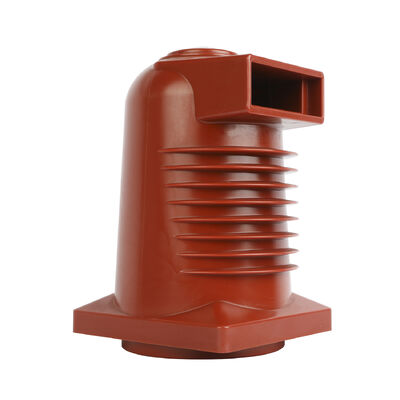

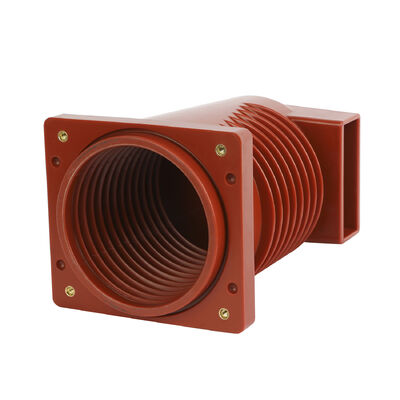

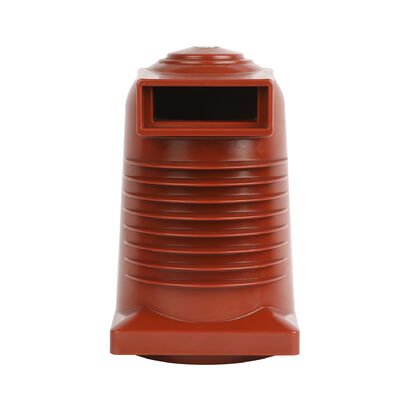

24kV Epoxy Resin V.T Spout Bushing Insulator in Medium-Voltage Switch Cabinet

  • 24kV Epoxy Resin V.T Spout Bushing Insulator in Medium-Voltage Switch Cabinet
  • 24kV Epoxy Resin V.T Spout Bushing Insulator in Medium-Voltage Switch Cabinet
  • 24kV Epoxy Resin V.T Spout Bushing Insulator in Medium-Voltage Switch Cabinet
  • 24kV Epoxy Resin V.T Spout Bushing Insulator in Medium-Voltage Switch Cabinet
Lugar de origem Wenzhou
Marca QIUPU
Certificação IEC
Número do modelo CHN3-24kV-225/1250A-1600A
Quantidade de ordem mínima 100 unidades
Detalhes da embalagem Caixas
Tempo de entrega 7 dias
Termos de pagamento T/T, União Ocidental
Habilidade da fonte 100.000 unidades/mês
Detalhes do produto
Material Resina Epóxi Cor Vermelho/Marrom
Alto 315mm Distância de Creppage 410mm
Tensão de taxa 24KV Tensão de frequência 68 kV
Resistência à Flexão 10KN Taxa atual 1250A-1600A
Destacar

24kV epoxy resin bushing insulator

,

medium-voltage switch cabinet insulator

,

V.T spout bushing with warranty
Deixe um recado
Descrição de produto

24kV Epoxy Resin V.T Spout Bushing Insulator in Medium-Voltage Switch Cabinet



Main feature





The contact box is the pressure gel molding structure of epoxy resin APG process, which is used for various kinds of handcart type switchgear, acting as insulation isolation and connection transition.The contact box is formalised by ecoxy with APG technologies, it is used for integration and conversion of Various switch trucks.



Depending on the location of the installation, the interior type and shape of the house may be selected, with conductors for the purpose and without conductors for the mother
Linear wall casing. Aluminum conductors are usually used in house electrical distribution equipment.





Item Technical data
Rated voltage (KV) 3.6 7.2 12 24 40.5
Rated frequency(Hz) 50
Insulator(capacity) insulating Frequency withstand voltage 5 min (KV) 25 32 42 68 100
Frequency withstand voltage 1 min (V) 2000
Lighting impulse withstand voltage (KV) 40 60 75 125 185
Rated Current 630A
Dispute bend (N) ≥1000




24kV Epoxy Resin V.T Spout Bushing Insulator in Medium-Voltage Switch Cabinet 0



Advantage:





We are specialty on epoxy resin medium voltage and high voltage components, such as 10KV, 24 KV and 40.5KV Circuit Breaker , Load breaker switch , Disconnecting Switch , Epoxy resin switchgear bushing , contactor box , insulators and transformer . 630A, 1250 A ,2500A , 3150A and 4000A contact box , club contact , fix contact, arm contact and jaw contact . 630A and 1250A VS1 circuit breaker . 630A and 1250A ZN85-40.5 circuit breaker . 12KV and 24KV earth switch. KYN28A-12 and KYN61 high voltage switchgear components .



24kV Epoxy Resin V.T Spout Bushing Insulator in Medium-Voltage Switch Cabinet 1

24kV Epoxy Resin V.T Spout Bushing Insulator in Medium-Voltage Switch Cabinet 2
