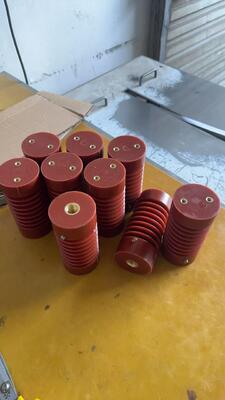

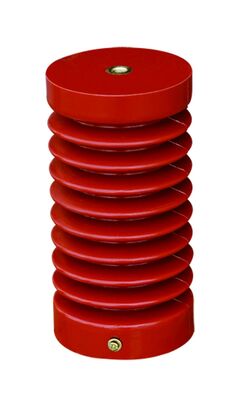

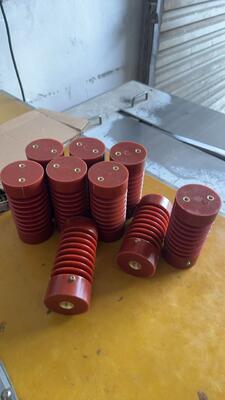

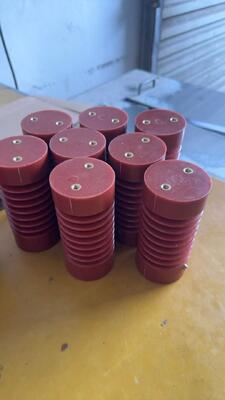

6kV Epoxy Resin Support Capacity Insulator for 125pF with 130mm Length

  • 6kV Epoxy Resin Support Capacity Insulator for 125pF with 130mm Length
  • 6kV Epoxy Resin Support Capacity Insulator for 125pF with 130mm Length
  • 6kV Epoxy Resin Support Capacity Insulator for 125pF with 130mm Length
  • 6kV Epoxy Resin Support Capacity Insulator for 125pF with 130mm Length
  • 6kV Epoxy Resin Support Capacity Insulator for 125pF with 130mm Length
Lugar de origem Wenzhou
Marca QIUPU
Certificação IEC
Número do modelo 65*130
Quantidade de ordem mínima 180 unidades
Detalhes da embalagem Caixas
Tempo de entrega 7 dias
Termos de pagamento T/T, União Ocidental
Habilidade da fonte 100.000 unidades/mês
Detalhes do produto
Material Resina Epóxi Cor Vermelho
Distância de fuga 280 mm Tensão de taxa 6KV
Tensão de frequência 42kv Resistência à Flexão 10 kN
Capacidade 20-125pF
Deixe um recado
Descrição de produto

6kV Epoxy Resin Support Capacity Insulator for 125pF with 130mm Length






Advantages for  insulators

1. Small size ,light weight
2. Excellent anti-pollution performance
3. Good aging resistance and anti-pollution performance
4. Easy to installation and transportation
5. Not brittle,and reduce the purchasing quantities for spare parts


Item Technical data
Rated voltage (KV) 3.6 7.2 12 24 40.5
Rated frequency(Hz) 50
Insulator(capacity) insulating Frequency withstand voltage 5 min (KV) 25 32 42 68 100
Frequency withstand voltage 1 min (V) 2000
Lighting impulse withstand voltage (KV) 40 60 75 125 185
Local discharge (pc) ≤10
Dispute bend (N) ≥10000
Capacity 125pF





            We are specialty on epoxy resin medium voltage and high voltage components, such as 10KV, 24 KV and 40.5KV Circuit Breaker , Load breaker switch , Disconnecting Switch , Epoxy resin switchgear bushing , contactor box , insulators and transformer . 630A, 1250 A ,2500A , 3150A and 4000A contact box , club contact , fix contact, arm contact and jaw contact . 630A and 1250A VS1 circuit breaker . 630A and 1250A ZN85-40.5 circuit breaker . 12KV and 24KV earth switch. KYN28A-12 and KYN61 high voltage switchgear components . The load switch adopts the pressure gas internal blowing structure, the arc extinguishing ability is strong, and does not affect the interphase and ground insulation, both the dynamic and static contacts have the arc contact, greatly increased the number of breakdowns.

6kV Epoxy Resin Support Capacity Insulator for 125pF with 130mm Length 06kV Epoxy Resin Support Capacity Insulator for 125pF with 130mm Length 16kV Epoxy Resin Support Capacity Insulator for 125pF with 130mm Length 2
